Technical details

Initially the Silicon Graphics Personal Iris was used as the workstation platform for the 3D Rapic program. This was a high-quality graphics workstation with the processing capability to render the 3d graphics quickly under Unix. They were replaced by the Silicon Graphics Indy and Indigo in the mid 1990's and soon after by the O2 workstation.

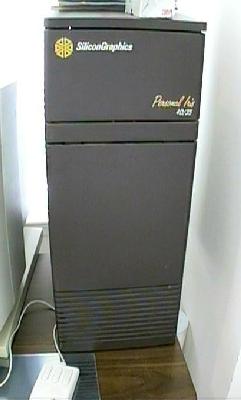

Personal Iris Specification
Indy Specification
Indigo Specification
O2 Specification

Processor :

  • 32-bit MIPS R3000A
    30MHz or
    35MHz RISC
  • 64K CPU data cache

Memory:

  • 8MB to 128MB

I/O Capability

  • Bi-directional parallel port
  • Ethernet
  • VME
  • 2 RS232 serial ports.
    (DIN-connectors)
  • Serial Digital audio I/O

Audio/Video

  • Audio: analog & serial digital, 16bit precision stereo





Processor :

  • 64-bit MIPS R4000 100MHz RISC

  • 512K secondary cache

Memory:

  • 16MB expandable to 256MB

Display Resolutions:

  • 1024 x 768,
    256 colours 8-bit
  • 1280 x 102,
    24-bit colour option

Graphics Features:

Storage and I/O:

  • None as standard. SCSI-2 for seven devices but only two 1in bays
  • Hard disks; 20MB 3.5 in floptical drive and CD recommended
  • The internals are impressive. Two GIO64 slots take a range of SGI cards, and there is space for two one-inch high drives

Communication:

  • Bi-directional parallel port
  • 2 serial ports
    - double up as MIDI ports
  • ISDN port
  • Ethernet,
  • miscellaneous analog and digital video formats,
  • miscellaneous analog and digital audio formats,
  • SCSI-2 port
Monitor:
  • 15in Trinitron
Analog Audio (Standard):

Digital Audio:



Expansion Options:

Networking:

  • AUI & 10BaseT Ethernet ports
Storage Options Internal:

External:

  • IndyCam (standard)
    CCD camera
    fixed focus
    wide angle lens
    640 x 480 image x 24-bit colour @
    30 frames per sec





Run-Time Libraries: Physical Dimensions:

  • 76.2mm x 406.4mm x 355.6mm
  • 7.27kg

Availability
Late September 1993

Processor :
  • 32-bit R3000 33MHz
  • 64-bit R4000 MHz 100MHz
  • Secondary Cache 1MB Primary Cache 16KB

Memory:

  • 1MB Memory Storage 8MB to 384MB of SIMM memory

Display Resolutions:

  • 1280x1024

Graphics Features:

Storage and I/O:

  • 3 internal 3.5" storage bays

Communication:

  • Single Ethernet port
  • 2 GIO-32 Slots SCSI channel
  • 2 Serial RS422 (38.4 k baud)
  • 1 Bidirectional Parallel port
  • 5 audio I/O ports
Monitor:
  • 19" color monitor

Audio/Video

Controller/Processor Motorola 56001 DSP 0 20 MHz

I/O Stereo line-level analog
Mono microphone
Serial digital (stereo)
Stereo headphone
Internal mono speaker

Sampling Rates 48KHz max
Converters A to D conversion (16 bit stereo, 64 I/C oversampling)

Digital to analog conversion (stereo 16/18 bit stereo, 8x oversampling with digital filter)
Connectors 5 stereo mini-phone jacks, 1/8 inch (3.5 mm)



Graphics

4 Color Maps (256 colors each)



Expansion Options:

Networking: Storage Options Internal:

External:





Run-time Libraries:

  • Physical Dimensions:
  • 15 inches H x 9.5 inches W x 10.9 inches D 24 lbs.
  • 16-Inch Monitor 16.1 inches H x 16.0 inches W x 18.8 inches D 52.9 lbs
  • 19-Inch Monitor 18.7 inches H x 18.9 inches W x 19.9 inches D 71.6 lbs



Processor :
  • MIPS R12000
     300 MHz
  • PMC-Sierra
     RM5200
    300 MHz
  • 1MB L2 cache

Memory:

  • 128MB-1GB synchronous DRAM (SDRAM)

Display Resolutions (with Double-Buffered 32-Bit Color):

  • 1280x1024 at 75 Hz

Graphics Features:

    Texture mapping in hardware, native OpenGL® graphics subsystem, hardware Z buffer, triangle rasterization in hardware, hardware image- mapping support, hardware stencil planes, hardware anti-aliasing, source plus destination alpha in hardware, fast Xline performance

Storage and I/O:

  • Internal single-ended SCSI controller
  • External single-ended SCSI controller
  • 1 or 2 internal 3.5" storage bays

Communication:

  • Single 10Base-T/100Base-TX port
  • Single 100Base-TX port
  • Dual serial RS422/RS423
  • DB-9 ports
  • Single IEEE-1284C parallel port
  • Two audio I/O ports
Monitor:
  • 19" color monitor
Analog Audio (Standard):
  • Monomicrophone, one 16-bit stereo input channel and one 16-bit stereo output channel,
  • stereo headphone output, stereo external speaker system output

Digital Audio:

  • 8 channels 24-bit ADAT optical I/O
  • 2 channels 24-bit AES-3id I/O
  • AES11 synchronization



Expansion Options:

  • PCI
  • Single-port Ultra SCSI
  • Single-attached FDDI
  • Dual-attached FDDI
  • Digital audio

Networking:

  • Second 100Base-TX Ethernet
  • ISDN basic rate interface
  • ATM adapter OC3 (155Mb/sec), 1 PCI port
  • Fibre Channel adapter
Storage Options Internal:
  • 9GB Ultra Fast/Wide drive (standard)
  • 18GB Ultra Fast/Wide drive
  • CD-ROM drive

External:

  • 9GB Ultra Fast/Wide drive
  • 18GB Ultra Fast/Wide drive
  • 3.5" floppy drive
  • 20GB 4 mm DAT drive
  • Digital linear tape





Run-Time Libraries:

  • OpenGL
  • OpenGL image extensions
Physical Dimensions:
  • 9" W x 12" H x 10.5" D
  • 22 lb
  • 19" monitor: 18.42" H x 18.03" W x 18.85" D
